| Lugar de origen: | Porcelana |
| Nombre de la marca: | YOKELINK |
| Certificación: | ISO9001 |
| Número de modelo: | Tipo T, tipo K. |
| Cantidad de orden mínima: | 500 piezas |
|---|---|
| Precio: | $0.6-$1.0 |
| Detalles de empaquetado: | Cartón y plataforma |
| Tiempo de entrega: | 10 dias |
| Condiciones de pago: | T/T |
| Capacidad de la fuente: | 100.000 unidades por mes |
| NOMBRE:: | Enlace de fusible | Modelo:: | Tipo K/H/T |
|---|---|---|---|
| Elemento del fusible: | Plata | Material de la cola: | Tin Plated Copper |
| Corriente nominal: | 1-100A |

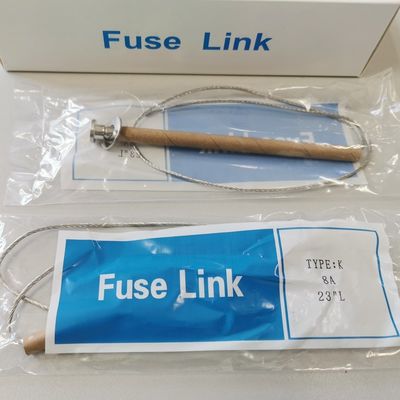

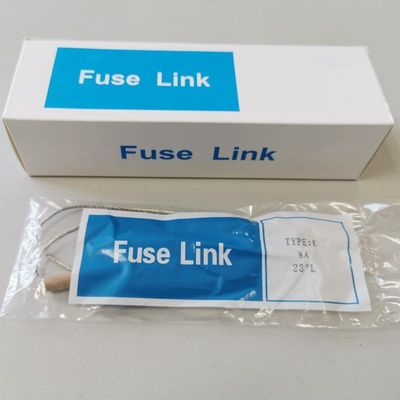

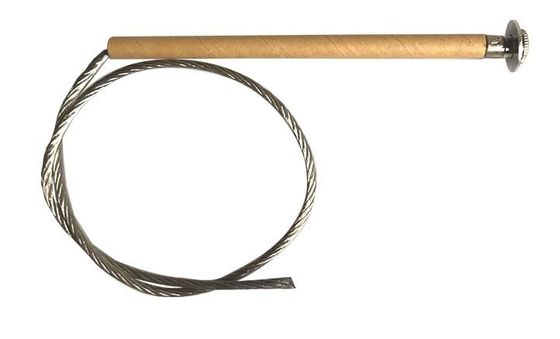

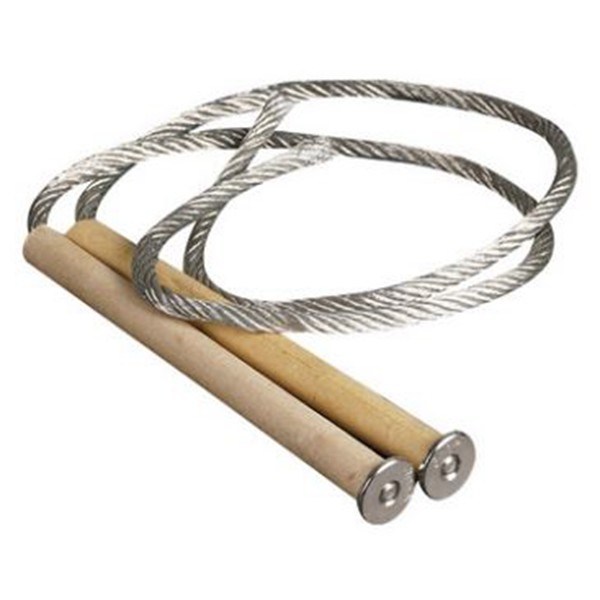

Fuse Link:
Yokelink Fuse Link the Fuse Element adopts the accurately tested material, high purity silver, or silver-copper eutectic or nickle-chrome eutectic, based on different rated current. The fuse element wire is extruded by mold of high accuracy. The cross section is inspected by laser micrometer to ensure the accuracy, while careful assembly guarantees no crack, shrinkage or twist which affects the time-current accuracy.
| Rated current (A) |
Dimensions (mm) | Quantity/carton | ||||
| A | B | C | D | F | ||
| 1 to 40 | 12.5±0.2 | 19.0±0.3 | Note 1 | 2.0 | 6.5 | 500 |
| 50 to 100 | 12.5±0.2 | 19.0±0.3 | 5.0 | 8.0 | 500 | |
| 120 to 200 | 19.0±0.3 | not applicable |
7.0 | 12.0 | 250 | |
| Note 1: Lengths of the Expulsion Fuse Links shall be 585mm and 787mm for 11KV and 33KV respectively. | ||||||
| FUSE LINK, TYPE K, COMPLETE WITH FIXED OR REMOVABLE BUTTON HEAD, |
||||||
Company Information
Since 2001, YokeLink has become a professional manufacturer specializing in Poleline hardware, fastener, tractor parts & farm accessories and other mechanical products with serving the electrical utilities industry, automotive, agriculture and construction industry clients around the world.
We produce both a standard range as well as customer orders. We are looking forward to forming successful business relationships with all of our customers. Our business concept is based on honesty and responsibility to provide our customer top quality products at reasonable price levels with prompt delivery service.
Sample
1. free sample of our standard products;
2. if need open mold for OEM drawing or sizes, we will charge some fee and will back to you when order comes or purchase quantity reach requirement;
Delivery Time
1. General specifications , small orders, our stock, delivery time is 7-15 days
2. Special specifications,or a large number of orders, delivery time is 30-45 days
After Sales
1. we will follow up the delivery until customer get the parts;
2. If quality of the parts have problem,please contact us asap.We will give you the best solution.
